Product Information
Description
Armstrong Carbon
The carbon A+ System package builder offers a guided shopping experience to assemble your custom foil kit instead of buying a pre-configured package.
THE ESSENCE OF FOILING
Combining rippability, easy pumping and endless glide.
Building on the legacy of our first HA (high aspect) foils initially released in 2021, the new HA range offers an unprecedented combination of rippability, easy pumping and endless glide that expands the potential of intermediate to expert surf, downwind and wing foilers. Seven sizes - 580, 680, 780, 880, 980, 1080, 1180cm2 - deliver a full quiver of options. The new HA range is the essence of foiling.

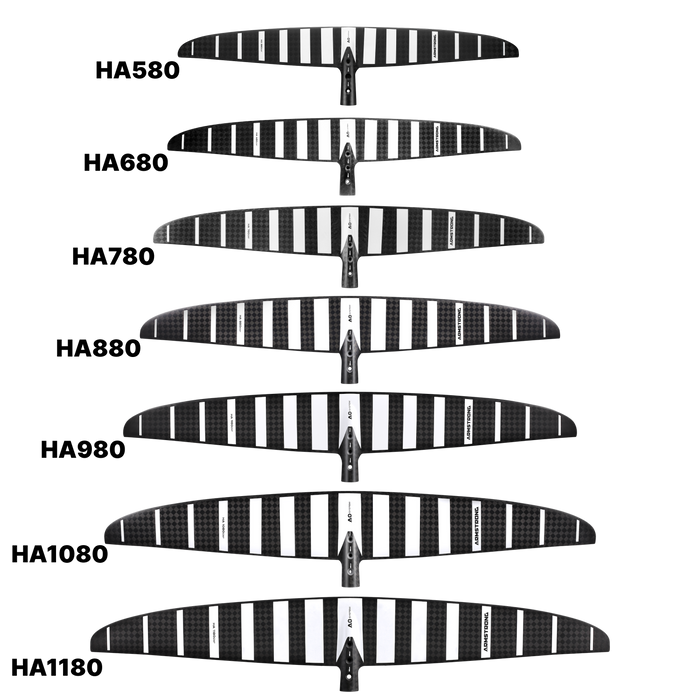

Compare All Sizes:
HA1180
Wing - Downwind - Surf Foil - Dock Start
The do-it-all wing that intermediate foilers will love. Tailored more for heavier riders, this wing is designed to perform in all disciplines.
Span: 1066mm | AR: 9.63
Weight:
2.45lb/1.11kg
HA1080
Wing - Downwind - Surf Foil - Dock Start
Everyone's hero foil for small days. This is the first HA front wing for most people and allows a wide range of skill abilities to get out on the water.
Span: 1020mm | AR: 9.63
Weight:
2.40lb/1.08kg
HA980
Wing - Surf Foil
The all-around foil for lighter weight riders riding at an intermediate level. For heavier weight riders (above 200lb), this wing is your performance surfoil or winging front wing.
Span: 974mm | AR: 9.68
Weight:
2.15lb/0.97kg
HA880
Wing - Surf Foil
The magic size of the line-up. It boasts an exceptional amount of glide and rippability for all disciplines. Imagine the MA1000 and the HA925 having a baby with a lower bottom end - that's the HA880.
Span: 923mm | AR: 9.68
Weight:
1.95lb/0.88kg
HA780
Wing - Surf Foil
A performance surf foil and winging front wing for medium weight riders. Intermediate to advanced surf foilers will enjoy this wing in mid size waves, or when conditions call for more drive and speed down the line.
Span: 870mm | AR: 9.70
HA680
Wing - Tow - Surf Foil
This is a light rider's high-performance winging, surf foiling, and towing dream front wing. Expert level surf foilers looking to connect with big waves while still enjoying a low stall speed and maneuverability will find the answer in the HA680.
Span: 818mm | AR: 9.80
HA580
Wing - Tow
This wing is designed to push experienced riders' limits as far as possible. Experienced riders will enjoy this size for both wing foiling and towing.
STAND OUT PERFORMANCE
A newly developed section shape, outline and profile give the HA range a remarkable “best of both worlds” ability to carve beautiful lines and easily stay high in the pumping power zone for maximum wave riding potential.
The foil section is adjusted incrementally at points across the wingspan (evolutive section shape) to provide a big boost to gliding efficiency and consistent lift at various bank angles and flight speeds. Riders are enabled to stay up high in the pumping power zone and experience an amazing carving feel for ultimate wave riding satisfaction.
PERFORMANCE PEDIGREE
Meticulously engineered to push your fun on the water.
The HA range benefits from two years’ worth of research with a leading CFD team in the hydrofoil sailboat world. These foils turn beautifully and their section is optimised to stay with the wave allowing smooth flowing connections between swell lines. Excellent lift means riders can drop down one full size from their previous HA foils for improved carving and speed range while maintaining an easy low end.
TOP TIER CONSTRUCTION
Built for progression.
High aspect foils experience extreme torsional forces in the water, especially when carving. We’ve crafted the HA range from premium Toray high and intermediate modulus carbon fibre for an ultra strong, stiff and lightweight foil that performs exceptionally under the feet of intermediate to expert riders. The consistency of this layup when combined with our industry-leading manufacturing quality provides the best in performance and durability.
All Features
All Specifications
HA580 | HA680 | HA780 | HA880 | H9980 | HA1080 | HA1180 | |
---|---|---|---|---|---|---|---|
Area | 580cm2 | 680cm2 | 780cm2 | 880cm2 | 980cm2 | 1080cm2 | 1180cm2 |
Span | Coming soon | 818mm | 870mm | 923mm | 974mm | 1020mm | 1066mm |
Aspect Ratio | Coming soon | 9.80 | 9.70 | 9.68 | 9.68 | 9.63 | 9.63 |
Weight | Coming Soon | Coming Soon | Coming Soon | 1.95Lb / 0.88Kg | 2.15Lb / 0.97Kg | 2.40Lb / 1.08Kg | 2.45Lb / 1.11Kg |

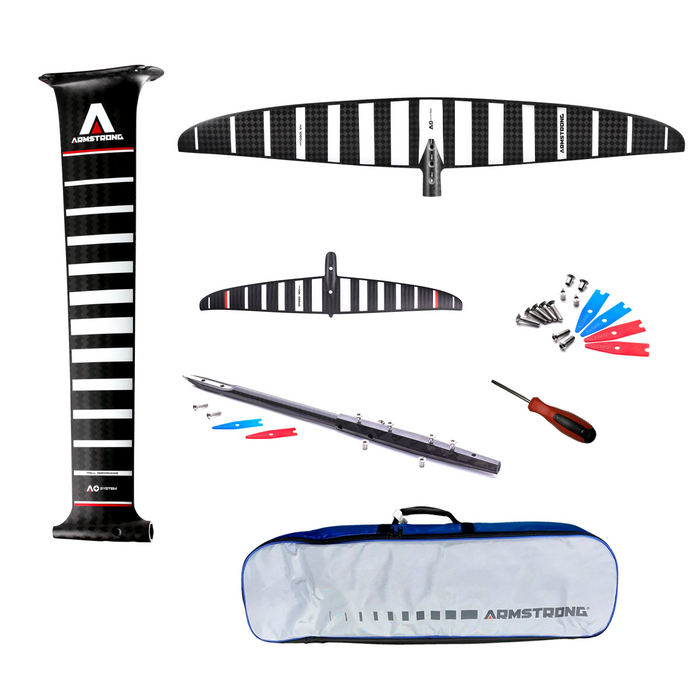

Package Includes:
- ONE High Aspect Front Wing:
- HA580 (SKU: HA580)
- HA680 (SKU: HA680)
- HA780 (SKU: HA780)
- HA880 (SKU: HA880)
- HA980 (SKU: HA980)
- HA1080 (SKU: HA1080)
- HA1180 (SKU: HA1180)
- Armstrong A+ System TC Fuselage-60cm (SKU: TC60A)

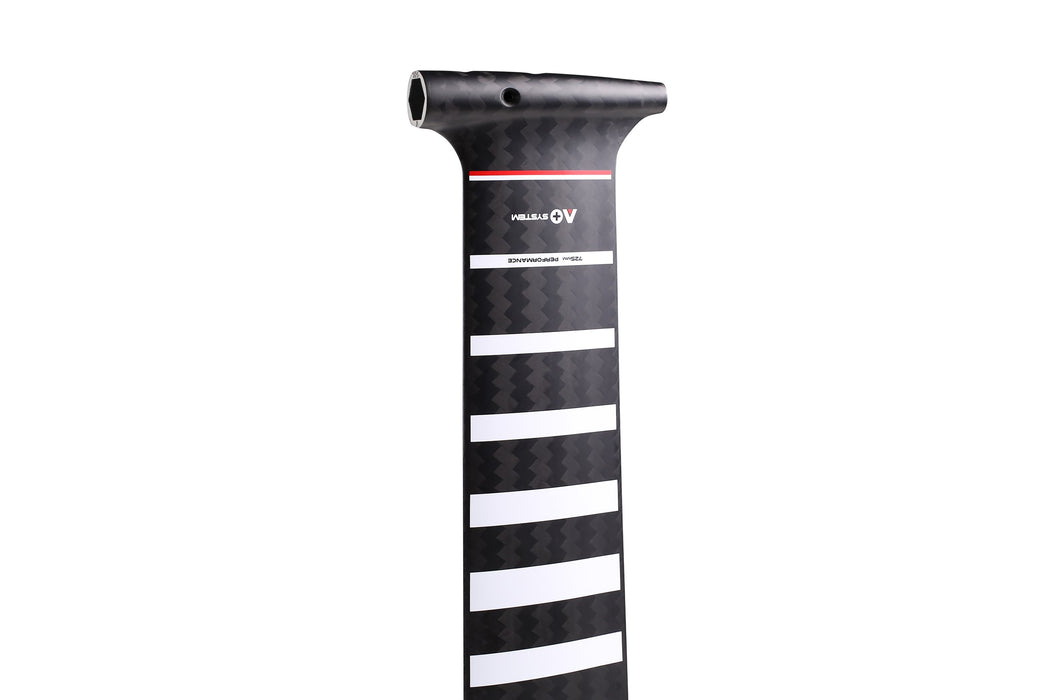

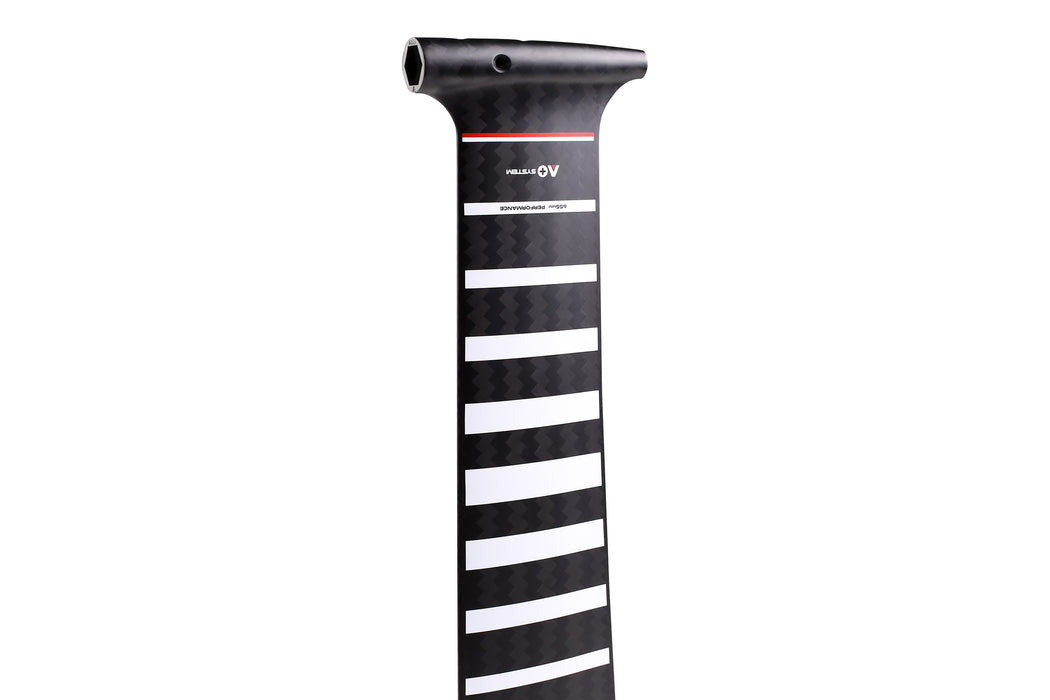

- Armstrong A+ Performance Mast-795mm (SKU: MAST795)
- Armstrong A+ System Tail Wing-Speed 180 (SKU: 4897115082733)
- Armstrong Torx T30 Hand Driver Tool (SKU: ARM23TORXDRIVER)

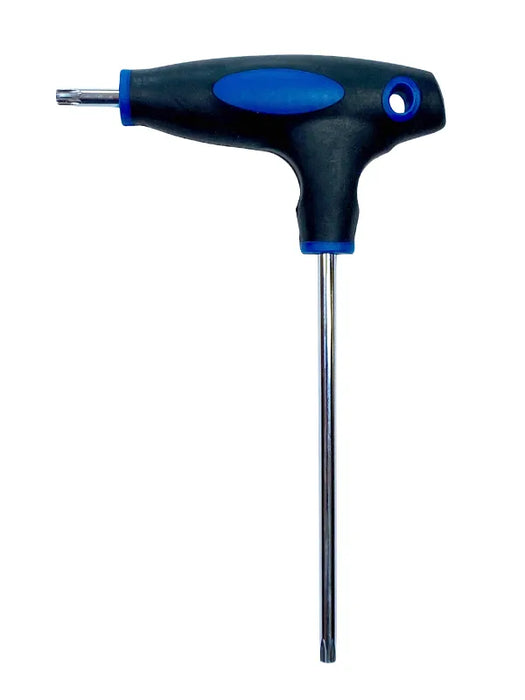

- Armstrong Torx T30 T-Handle Tool (SKU: ARM19TORX)
- Armstrong A+ System Foil Screw Set (SKU: FSSA)
- Armstrong Foil Bag-X-Large (SKU: XLKITBAG)
