Axis Broad Spectrum Carve (BSC) Front Wing

From Axis

The ultimate all-rounder, and the place to start your foiling journey.

Our Original Series (1020, 920, 820) performed admirably during the first generation of foiling water sports and are still ideal beginner foils. When it was time to replace this model, we set out to significantly improve speed and range, without losing the easy lifting properties we all loved about the original series.

For the BSC range we completely changed the outline, increasing aspect ratio and reducing thickness for vastly improved speed and glide, while incorporating what we had learned from the HPS project in turn down and twist for optimum turning. However, like the Original, we developed a foil section with a high stall angle. This means it still operates well at slow speeds, so will be forgiving when you make a mistake gybing on a Wind foil or Wing foil. It will also get you up easily and keep you foiling when surfing slow or weak waves.

The result is a foil that has an incredibly wide range of operation – the ultimate all-rounder. One day you could be foiling tiny waves on your SUP, the next you could be screaming across the harbour with a hand wing, all on the same foil.

Package Includes

• Wing
• Wing Cover

• Assembly Hardware Sold Separately

BSC 1120 Carbon Hydrofoil Wing Technical Data

• WINGSPAN: 1120 mm / 44inches
• MAX CHORD: 220mm / 8.6inches
• ASPECT RATIO: 6.25
• ACTUAL AREA 2102 square cm / 326 square inches
• PROJECTED AREA: 2007 square cm / 311 square inches
• VOLUME: 3581 cubic cm / 219 cubic inches

BSC 1060 Carbon Hydrofoil Wing Technical Data

• WINGSPAN: 1060 mm / 42 inches
• MAX CHORD: 200mm / 8 inches
• ASPECT RATIO: 6.51
• ACTUAL AREA 1803 square cm / 278 square inches
• PROJECTED AREA: 1726 square cm / 268 square inches
• VOLUME: 2800 cubic cm / 171 cubic inches

BSC 970 Carbon Hydrofoil Wing Technical Data

• WINGSPAN: 970 mm / 38.2 inches
• MAX CHORD: 190mm / 7.5 inches
• ASPECT RATIO: 6.27
• ACTUAL AREA 1572 square cm / 244 square inches
• PROJECTED AREA: 1501 square cm / 233 square inches
• VOLUME: 2313 cubic cm / 141 cubic inches

BSC 890 Carbon Hydrofoil Wing Technical Data

• WINGSPAN: 890 mm / 35inches
• MAX CHORD: 170mm / 6.7inches
• ASPECT RATIO: 6.43
• ACTUAL AREA 1290 square cm / 200 square inches
• PROJECTED AREA: 1232 square cm / 191 square inches
• VOLUME: 1697 cubic cm / 104 cubic inches

BSC 810 Carbon Hydrofoil Wing Technical Data

• WINGSPAN: 810 mm / 32 inches
• MAX CHORD: 155mm / 6/1inches
• ASPECT RATIO: 6.42
• ACTUAL AREA 1070 square cm / 166 square inches
• PROJECTED AREA: 1022 square cm / 158 square inches
• VOLUME: 1284 cubic cm / 78 cubic inches

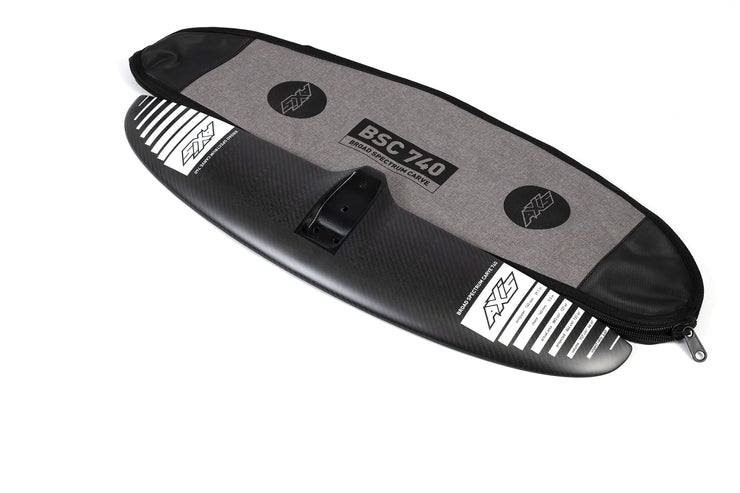

BSC 740 Carbon Hydrofoil Wing Technical Data

• WINGSPAN: 740 mm / 29.13 inches
• MAX CHORD: 140mm
• ASPECT RATIO: 6.49
• ACTUAL AREA 883 square cm / 136.9 square inches
• PROJECTED AREA: 844 square cm / 130.8 square inches
• VOLUME: 757 cubic cm / 46 cubic inches
